Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4

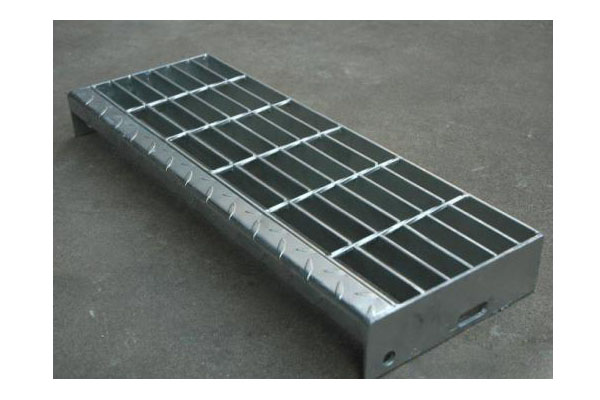

T4 Type Stair Step Plate Silver White Load-Bearing Grid Plate

The front step guard plate with T4 pattern is a kind of steel guard plate with T4 pattern. Q235 steel (supporting customization) is adopted for the step plate of steel ladder. The outer surface is hot-dip galvanized, and the width is usually between 0.5-1.0m.
It is not easy to rust. As the step board of steel ladder, the selection of steel grating has the advantages of not easy to accumulate dust and no cleaning. It is easy to install, ventilated, daylighting and heat dissipation, and anti-skid.
It is widely used in power plants, water plants and other factories, as well as platforms, walkways, cinemas, visiting platforms, parking lots and other large places in the fields of municipal engineering and environmental sanitation engineering.

Stairtread grating data type

Recommended Width(mm):

T1-T6		125	155	185	215	245	275	305
bearing bars pitch		30	30	30	30	30	30	30
T1-T2	T5-T6	125	165	--	205	245	285	325
bearing bars pitch		40	40		40	40	40	40
T3-T4		115	155	--	195	235	275	315
bearing bars pitch		40	40		40	40	40	40
T1-T2	T5-T6	--	--	185	--	245	--	305
bearing bars pitch				60		60		60
T3-T4		--	155	--	215	--	275	--
bearing bars pitch			60		60		60
Center distance of bolt hole		45	75	75	100	100	150	150

The corresponding relationship between the recommended size of the maximum length (mm) and the specification of flat steel is as follows:

bearing Specifications	25*3	25*5	32*5	40*5
bearing bars at 30mm pitch	550	900	1300	1600
bearing bars at 40mm pitch	450	750	1200	1500
bearing bars at 60mm pitch	---	550	850	1350

If you have some other questions for T4 type stair tread,you can contact with Kaiheng .

the steel ladder step grid plate T4 is mainly used below

Steel ladder treads are mainly used in environmental sanitation projects, municipal projects, power plants, sewage plants and cinemas.

How is the steel ladder step tread's surface?

In order to achieve the corrosion resistance of the steel ladder outdoors and not afraid of rain, the steel grating is usually hot-dip galvanized.The quality and requirements after galvanizing meet the provisions of GB / t13912.

T4 steel ladder grating plate steel grating stair tread T4
