    T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

    Ask Lasest Price
    Brand Name : Kaiheng Wire Mesh
    Model Number : kh118
    Certification : ISO 9001:2015
    Price : real-time quotes
    Payment Terms : Western Union, MoneyGram, T/T, D/A, L/C
    Supply Ability : 2000㎡ per day
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

    T4 Welded Fixing Without Nosing Stair Tread For Steel Ladder 40mm Bearing Bars Pitch

    Brief introduction of T4 type flat steel step grating plate with spacing of 40mm


    T4 type steel ladder step grating plate with 40mm flat steel spacing is the lightest and most economical model. It is an ideal choice when the span is small. It adopts load flat steel and cross bar longitude and latitude to design a steel ladder step plate grating with rectangular grid holes. The side plate size of T4 type is 65mm * 5mm flat steel, and the bolt hole spacing varies according to the width of the step plate. See the parameter table for details.

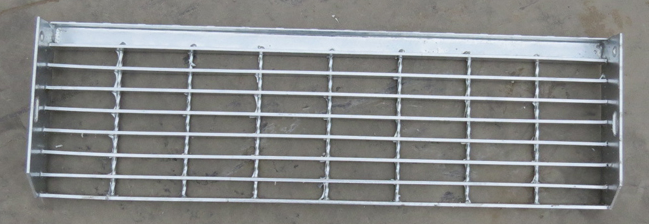

    T4 stair tread

    Attribute list of steel ladder step grating plate with T4 flat steel spacing of 40mm


    nameT4 model 40mm bearing bar pitch stair tread grid
    colorsilver white
    materialcarbon steel q235 or as your required
    surfacehot dip galvanizing
    performanceEconomical and light, corrosion-resistant, high load-bearing, convenient installation and disassembly
    bearing bar pitch(mm)40mm
    grid width(mm)115,155,195,235,275,315
    bearing bar(mm*mm)25*3,25*5,32*5,40*5
    Maximum Length(mm)450,750,1200,1500
    standardiso9001:2015
    transportationshipping
    Side plate size(mm*mm)65*5
    Bolt hole spacing(mm)45,75,75,100,150,150

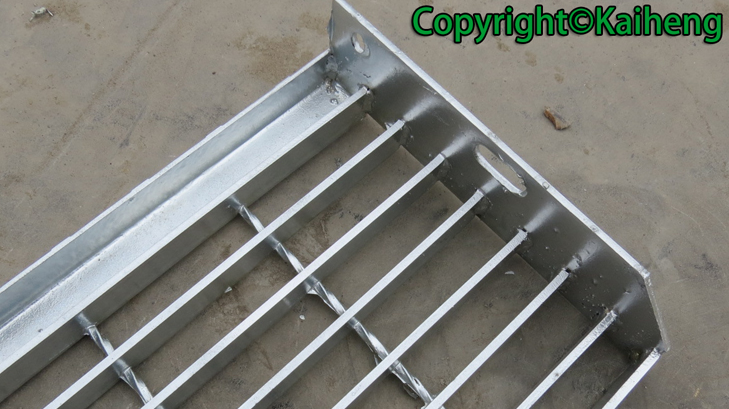

    T4 bearing bar pitch 40mm grid stair tread

    Performance and application of T4 flat steel step grating plate with spacing of 40mm


    T4 type steel ladder step plate with a spacing of 40mm has the strongest resistance in the scene of surface impact due to the small spacing of flat steel and high density of load flat steel. Moreover, the hot-dip galvanizing treatment process can make it more corrosion-resistant. It is most widely used in the industrial field. In addition, its grid hole structure can show advantages in rainy and snowy weather, free from manual maintenance and cleaning. Compared with concrete structure, this material has the advantages of light structure and low price.


    Customization of steel ladder step grating plate with T4 flat steel spacing of 40mm

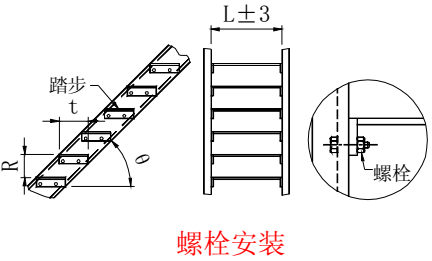

    This specification has multiple width recommendations in the attribute table, and a variety of flat steel section specifications correspond to different widths and lengths. If you need to customize, you can refer to the length and width in the drawing design to select the corresponding flat steel model recommendations. Please send the request to email: info@cnkaiheng.com
